Schematic 3D
Visualize electric circuits in 3D

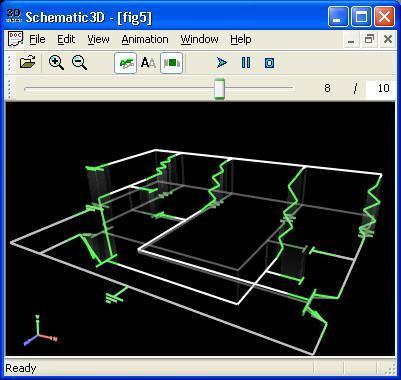

Schematic3d depicts analog circuits in three dimensional space. Third dimension for circuit element is added based on the voltage. It generates animation for transient simulation. (Values of voltages are taken from PSPICE software).
This was my self-driven project, presented at International Islamic University Malaysia Research, Invention and Innovation Exhibition (IRIIE 2007).
Sourceforge project page and download » (2007)
Year 2007, Windows only, GPL v2.
